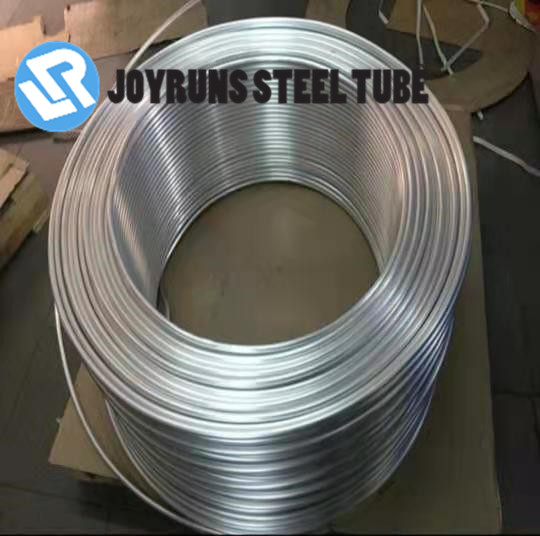

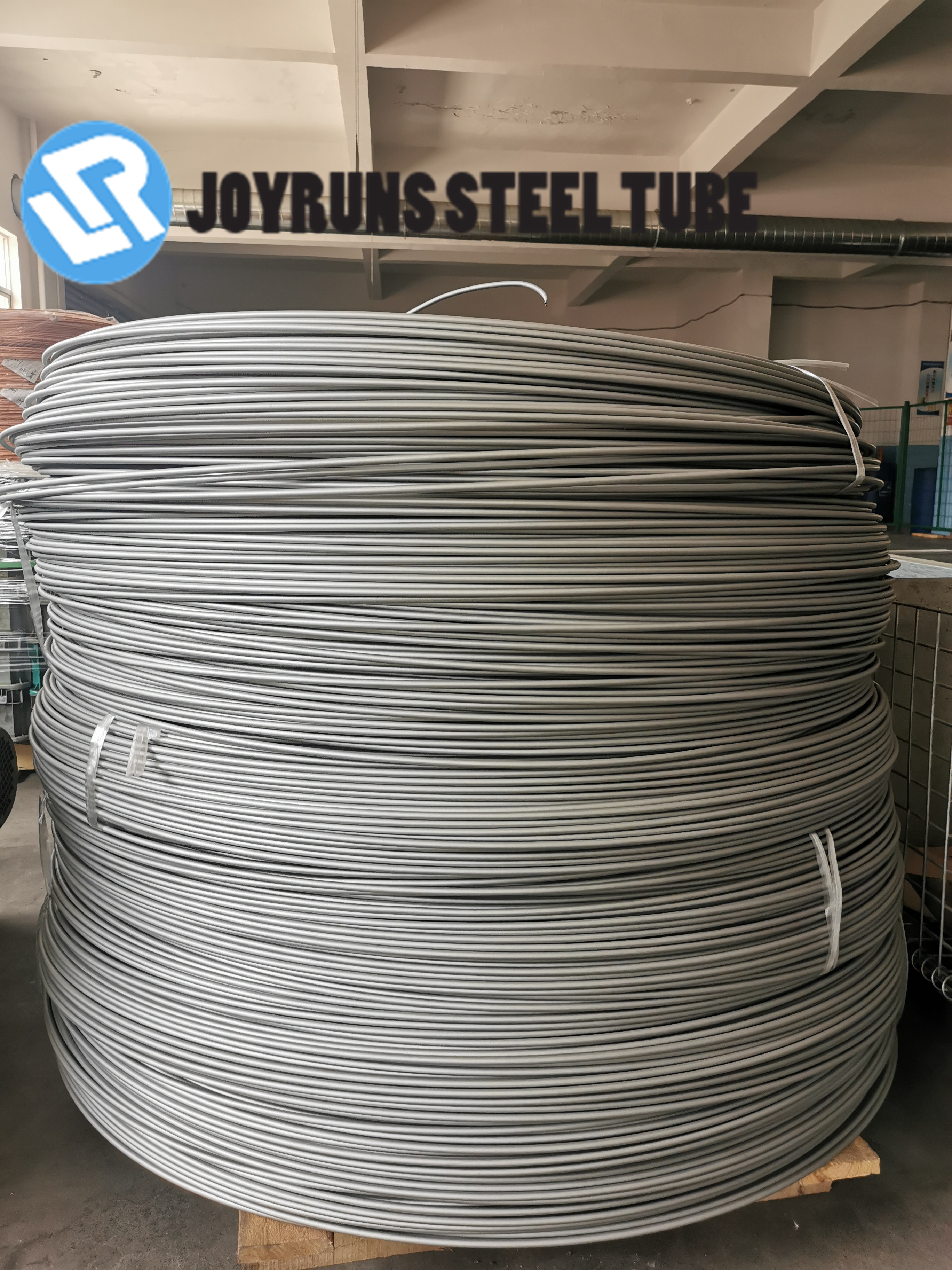

1070 ASTM B210 Aluminium Pipe Coil Tube For Refrigeration 1/4" *1mm
Our 1070 Extruded aluminum tube for refrigeration is widely used for refrigeration and air condition industry.
Like evaporator,air conditioner,condenser,heat exchanger,freezer,oven gas,boiler and so on.
The material has 1050/1060/1070/3003/3103/3013 etc.
Temper O-H112,H112,F.
The normal specification has,
4.0x0.5mm,6.0x1.0mm,7.0x1.0mm,7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,
16.0x1.0mm,19.05x1.5mm.
ASTM B210 Standard Specification for Aluminum and Aluminum-Alloy Drawn Seamless Tubes
The aluminum tube is a kind of non-ferrous metal tube, which refers to a metal tubular material that is extruded into a hollow metal along its longitudinal length by a pure aluminum or aluminum alloy.
The surface of 1070 aluminum is difficult to be corroded due to its dense oxide protective film. It is often used in the manufacture of chemical reactors, medical devices, refrigeration units, petroleum refining units, oil and gas pipelines, etc.

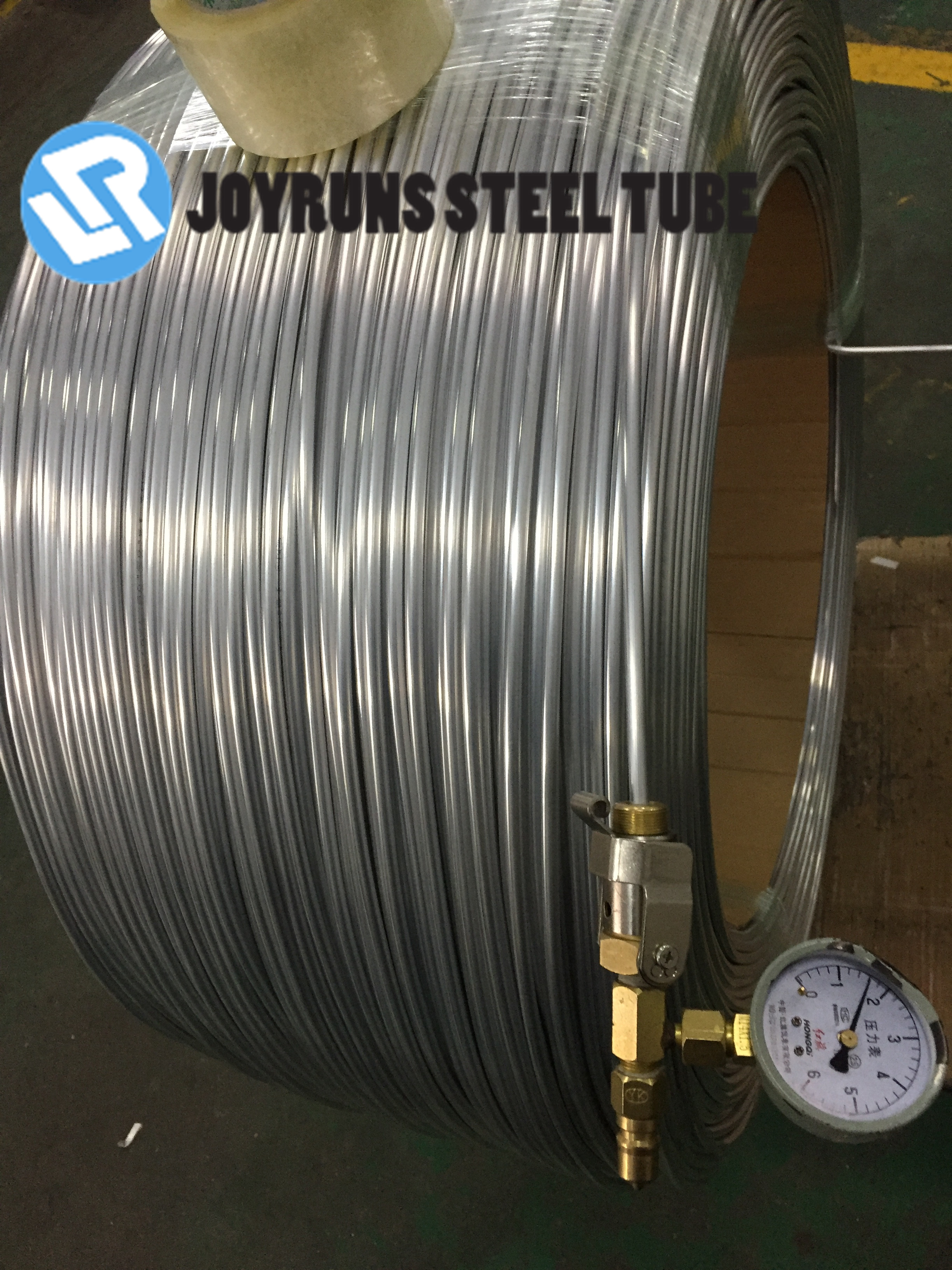

Aluminum tube for the HVAC&R industry. the surface of the coiled tube is smooth, no pores, no wear, and nitrogen is maintained. aluminum tubes are especially suited to long production runs for industrial applications. Mainly be used on the air-conditioner, freezer, refrigeration, Condenser, intercooler, evaporator, warm wind movement, air conditioner pipeline, car radiator, etc.
| A1050 Aluminium Chemical Composition |
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.5~100 | 0~0.25 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.40 | 0~0.03 |
| A1060 Aluminium Chemical Composition |
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.6-100 | 0~0.25 | 0~0.05 | 0~0.03 | 0~0.05 | 0~0.03 | 0~0.03 | / | 0~0.35 | |
| A1070 Aluminium Chemical Composition |
| Al | Si | Cu | Mg | Zn | Mn | Ti | V | Fe | Others |
| 99.7~100 | 0~0.2 | 0~0.04 | 0~0.03 | 0~0.04 | 0~0.03 | 0~0.03 | 0~0.05 | 0~0.25 |
|
| Physical Property of 1050 1060 1070 aluminum tube pipe |
| Alloy | Temper | Wall thickness
/mm | Room temperature Test Result |
| Tension Strength/MPa | Yield Strength/MPa | Elongation/% |
| A50mm | A |
| Not less than |
| 1050 | O, H111 | All | 60 ~ 100 | 20 | 25 | 23 |
| H112 | All | 60 | 20 | 25 | 23 |
| F | All | － | － | － | － |
| 1060 | O | All | 60 ~ 95 | 15 | 25 | 22 |
| H112 | All | 60 | － | 25 | 22 |
| 1070 | O | All | 60 ~ 95 | － | 25 | 22 |
| H112 | All | 60 | 20 | 25 | 22 |
